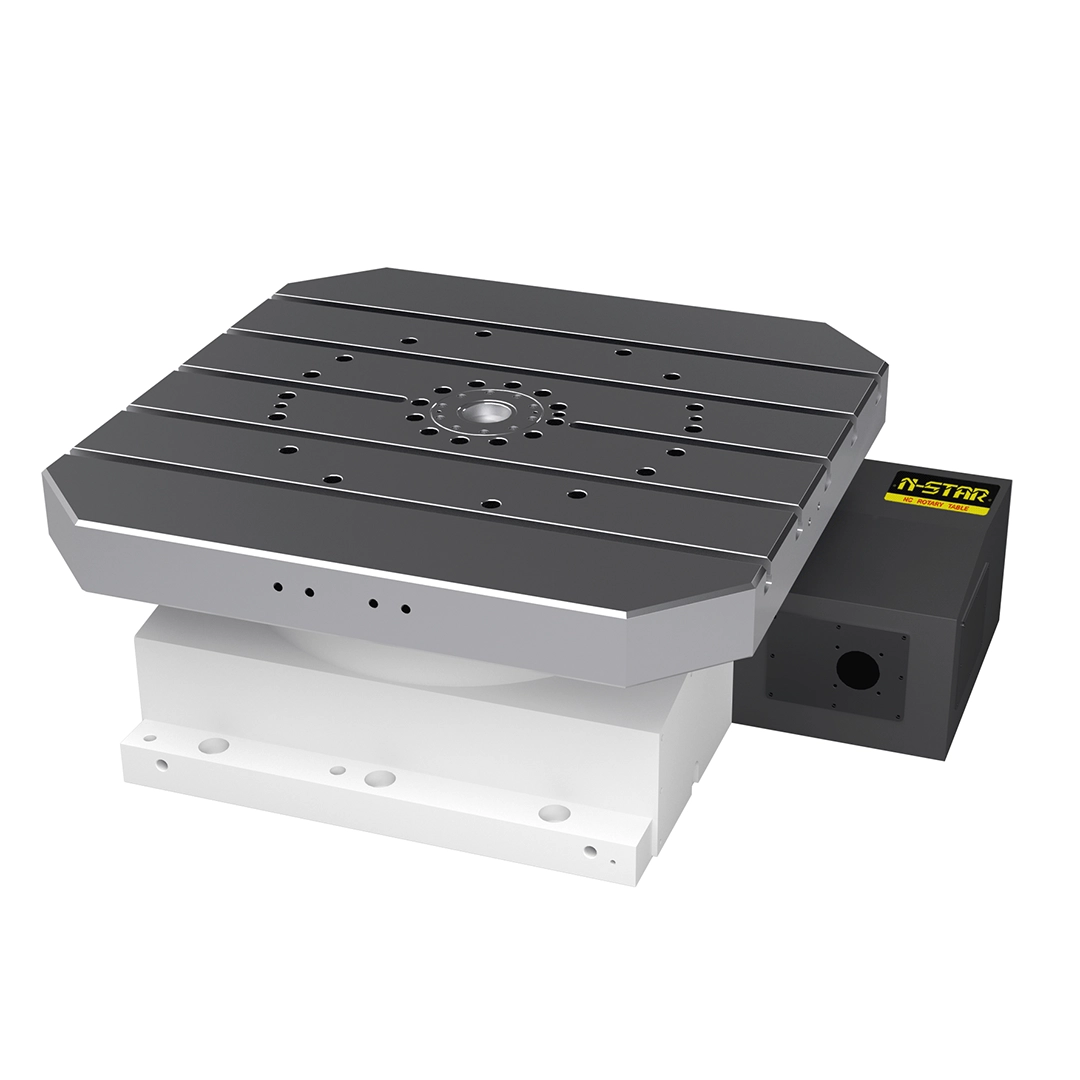

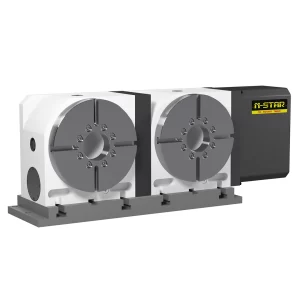

Horizontal Rotary Table

Mode		Unit	HRD-430S	HRD-550S
Table diameter		mm	430*430	550*550
Disk aperture		mm	ø80	ø80
Center height		mm	290.5	325.5
T-solt width of table		mm	14H7	18H7
Positionning button		mm	18H7	18H7
Servo motor modle（Suggest）	FANUC	-	ßis22	ßis22
Servo motor modle（Suggest）	MITSUBISHI	-	HF204	HF204
Min.increment		deg.	0.001°	0.001°
Lndexing arccuracy		sec.	20	20
Repeatability		sec.	4	4
Speed reduction ratio		-	1:120	1:120
Max.table speed		rpm	33.3	33.3
Locking method		kg/cm²	35（hydraulic）	35（hydraulic）
Allowable cut force		Kg-m	200	200
Max.load	Horizontal	kg	500	500
Weight(motor excluded)		kg	420	440

Mode		Unit	HID-630S	HID-800S
Table diameter		mm	630*630	800*800
Disk aperture		mm	55	55
Center height		mm	330	344
T-solt width of table		mm	18H8	18H8
Positionning button		mm	14H7	14H7
Servo motor modle（Suggest）	FANUC	-	ßis22	ßis22
Servo motor modle（Suggest）	MITSUBISHI	-	HF204	HF204
Min.increment		deg.	1°/5°	1°/5°
Speed reduction ratio		-	1:180	1:180
Max.table speed		rpm	11	11
Lndexing arccuracy		sec.	8	8
Repeatability		sec.	2	2
Locking method		Kg/cm²	35（hydraulic）	35（hydraulic）
Locking force		kg	6000	6000
Max.load	Horizontal	kg	1200	1200
Weight(motor excluded)		kg	860	860
